Low order waveplate

Product Info

Waveplates also known as retardation plates are optical element having two principal axises, slow and fast, that resolve an incident polarized beam into two mutually perpendicular polarized beams.The emerging beam recombines to form a particular single polarized beam.Retardations plates produce full, half, quarter and octadic-wave retardations.

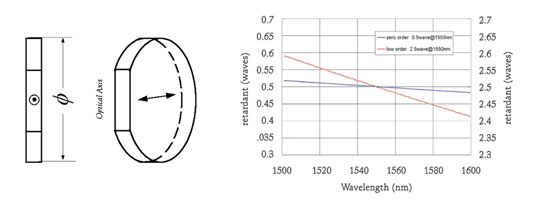

Low Order Waveplates are much better than the multi-order wave-plates because of its thinner thickness (less than 0.5mm). Better temperature (38℃), Wavelength (1.5nm) and incident angle (4.5°) bandwidth and high damage threshold make it widely used in common application. Also it is economical.



Specifications



Material:

Crystal Quartz

Diameter tolerance:

+0.0, -0.1mm

Wavefront distortion:

λ/8

Retardation tolerance:

λ/500

Wavelength range:

240-2100nm

Parallelism:

< 1 arc second

Surface quality:

20-10 scratch & dig

Coating:

AR coating, R<0.2% on both surface at central wavelength
